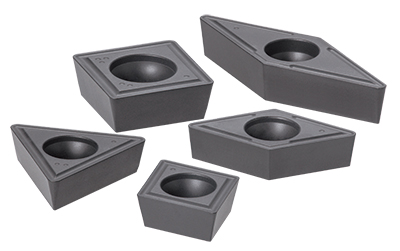

T500 series

An optimal CVD grade for high speed machining of cast iron

The thickest coating layer improves tool life in high speed machining


T515

Applications
External grooving  Internal turning  External turning

T505

  • K05 – K20
  • An optimal CVD grade for high speed machining of cast iron

LEARN MORE

T515

  • K10 – K20
  • Stable machining in a wide range of applications from continuous to interrupted cutting

LEARN MORE

Example #1

General Industry

Part:Machine part
Material:FCD500
Insert:CNMG120408-CM
Grade:T505
Cutting conditions:Vc = 100(m/min)
f = 0.5 (mm/rev)
ap = 2.0 (mm)
Application: External turning
Coolant: Dry
Example #2

Automotive Industry

Part:Hub
Material:FCD400 / GGG40
Insert:CNMG120408
Grade:T515
Cutting conditions:Vc = 260 (m/min)
f = 0.25 (mm/rev)
ap = 3.0 (mm)
Application: Face turning
Coolant: Wet
Example #3

Automotive Industry

Part:Differential case
Material:Ductile cast iron
Insert:CNMG120412
Grade:T515
Cutting conditions:Vc = 140 (m/min)
f = 0.25 (mm/rev)
ap = 1.0 (mm)
Application: External turning
Coolant: Wet

View more reports

T505
ChipbreakerGradesCorner radius
RE		Depth of cut
ap (mm)		Feed
f (mm/rev)		Cutting speed: Vc (m/min)
Grey cast ironDuctile cast iron
CMT5050.41 – 50.1 – 0.25180 – 700180 – 400
T5050.81 – 50.15 – 0.4180 – 700180 – 400
T5051.21 – 50.15 – 0.5180 – 700180 – 400
All-roundT5050.41 – 60.2 – 0.3180 – 700180 – 400
T5050.81 – 60.2 – 0.5180 – 700180 – 400
T5051.21 – 60.2 – 0.5180 – 700180 – 400
T5051.61 – 60.3 – 0.5180 – 700180 – 400
Flat-topT5050.80.05 – 20.2 – 0.45180 – 700180 – 400
T5051.20.05 – 20.2 – 0.6180 – 700180 – 400

T515
ChipbreakerGradesCorner radius
RE		Depth of cut
ap (mm)		Feed
f (mm/rev)		Cutting speed: Vc (m/min)
Grey cast ironDuctile cast iron
CMT5150.81.0 – 5.00.15 – 0.40150 – 700150 – 300
T5151.21.0 – 5.00.15 – 0.50150 – 700150 – 300
CHT5150.42.0 – 6.00.10 – 0.30150 – 700150 – 300
T5150.82.0 – 6.00.20 – 0.45150 – 700150 – 300
T5151.22.0 – 6.00.20 – 0.65150 – 700150 – 300
All-roundT5150.41.0 – 6.00.20 – 0.30150 – 700150 – 300
T5150.81.0 – 6.00.20 – 0.50150 – 700150 – 300
T5151.21.0 – 6.00.20 – 0.50150 – 700150 – 300
T5151.61.0 – 6.00.30 – 0.50150 – 700150 – 300
Fiat-topT5150.80.05 – 2.00.20 – 0.45150 – 700150 – 300
T5151.20.05 – 2.00.30 – 0.80150 – 700150 – 300
SW
(Wiper)		T5150.80.5 – 2.00.30 – 0.60150 – 700150 – 300
T5151.20.5 – 2.00.50 – 0.80150 – 700150 – 300
T505
ChipbreakerGradesCorner radius
RE		Depth of cut
ap (mm)		Feed
f (mm/rev)		Cutting speed: Vc (m/min)
Grey cast ironDuctile cast iron
CMT5050.40.05 – 20.05 – 0.2180 – 700180 – 400
T5050.80.05 – 20.05 – 0.3180 – 700180 – 400
T5051.20.05 – 20.05 – 0.3180 – 700180 – 400

T515
ChipbreakerGradesCorner radius
RE		Depth of cut
ap (mm)		Feed
f (mm/rev)		Cutting speed: Vc (m/min)
Grey cast ironDuctile cast iron
CMT5150.40.05 – 2.00.05 – 0.2150 – 700150 – 300
T5150.80.05 – 2.00.05 – 0.3150 – 700150 – 300
T5151.20.05 – 2.00.05 – 0.3150 – 700150 – 300
