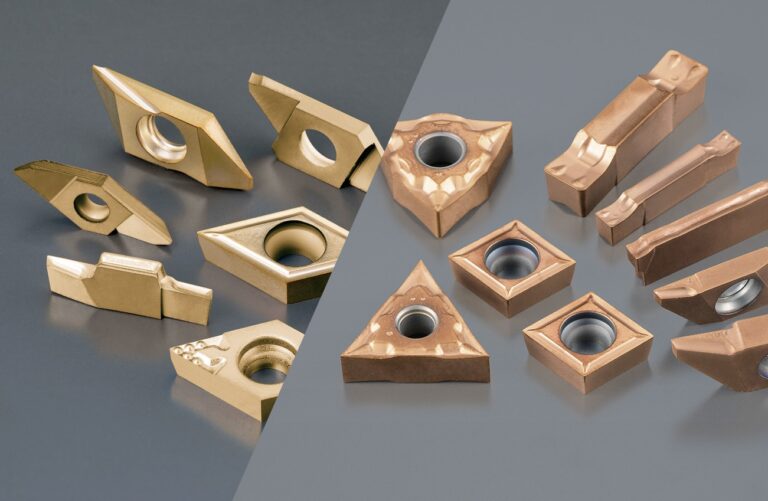

NTK DT4/DM4

Difficult-to-cut materials ｜ Carbide grade for Swiss CNC lathes

Exceptional Heat Resistance for High-Performance Machining

Ideal for difficult materials such as heat resistant alloys and titanium alloys

Stable machining even during high temperature machining conditions
Features

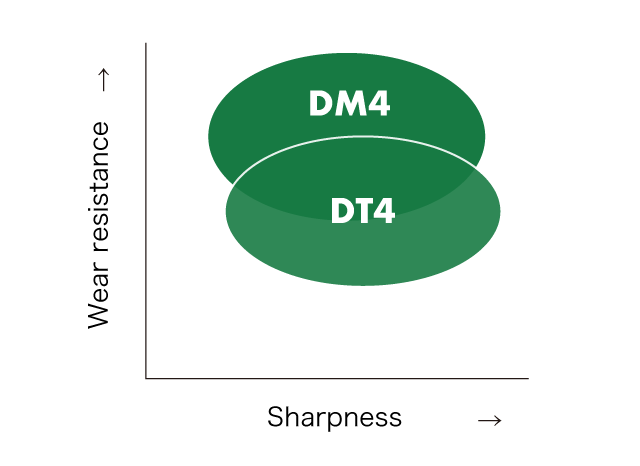

  • TiAlN layer protect against insert deterioration from excessive heat
  • DT4 has a thin coating. Insert sharpness benefits machining small diameter parts
  • DM4 has a thick coating. Its heat and wear resistance suite it well for high load grooving and cut-off operations.
Tooling application

Difficult-to-cut materials especially heat resistant alloys and titanium alloys
Front turning / Back turning / Grooving / Cut off

Cut off
Material :
SUJ2
Cutting speed :
100 m/min
Feed :
0.05 mm/rev
Coolant :
WET

Insert edge comparison after 800 parts
DM4 exhibits excellent wear resistance compared to competitor’s insert.

Aircraft parts
Material :
Hastelloy
Cutting speed :
50 m/min
Feed :
0.25mm/rev
DOC :
0.5 mm
Coolant :
WET
DM4
50 pcs / corner
Competitor’s PVD coated carbide
30 pcs / corner

DM4 achieved 1.7 times longer tool life compared to the competitor’s PVD coated carbide.

Medical screw
Material :
Titanium alloy
Cutting speed :
60 m/min
Feed :
0.02 mm/rev
DOC :
0.5 mm
Coolant :
WET
DT4
400 pcs / corner
Competitor’s PVD coated carbide
250 pcs / corner

DM4 achieved 1.6 times longer life compared to the competitor’s insert.
