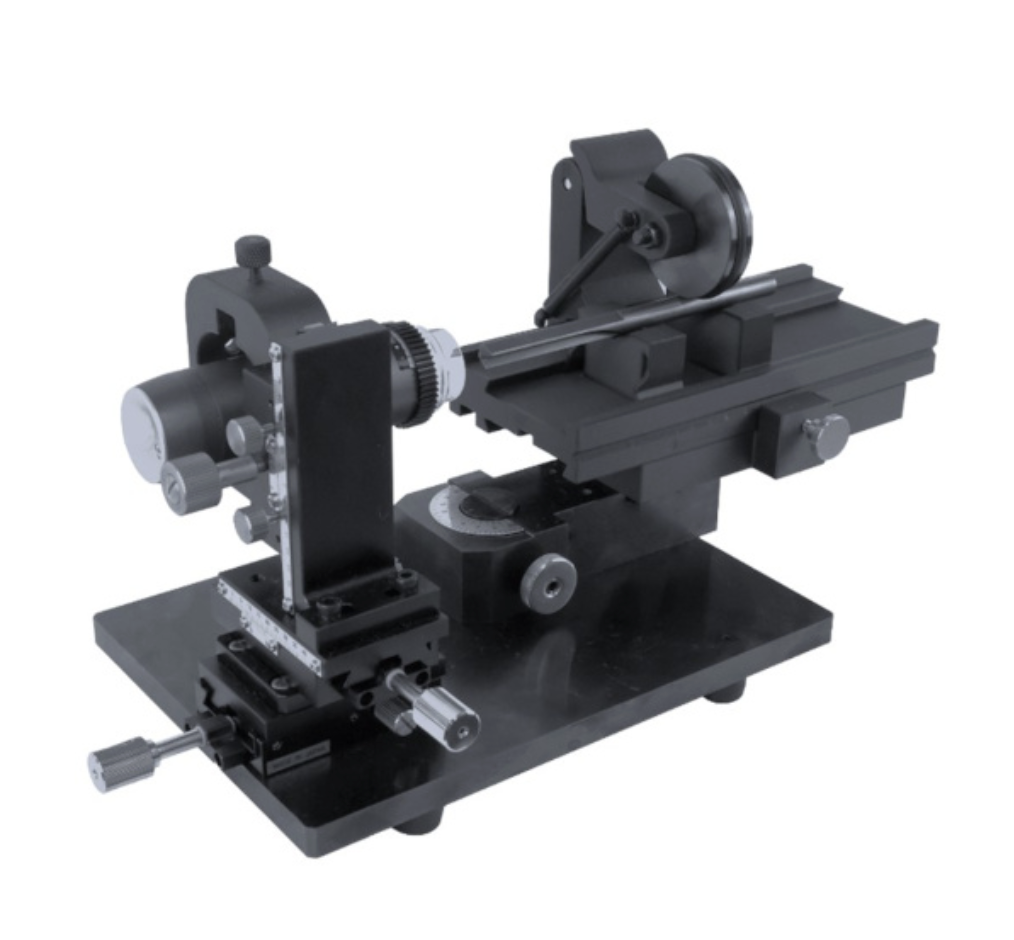

QEC CUBIC

Quick Economic C Cubic

Easily to observe tools anytime, anywhere!

With simple operations in the minimal space, the cutting edge condition can be easily observed without any special equipments.
  • Easy to operate, anyone can use it right away
  • The only equipment required is a PC and a CCD camera, which reducing investment.
  • A4 size means it can be installed anywhere.
  • Utilizing a 3D printer protects tools, and the lightweight design makes it portable.
QEC CUBIC Quick Economic C Cubic

“Amazing Ideas / Facts!”

QEC CUBIC allows you to easily, quickly and accurately observe the condition of the tool cutting edge.
By narrowing down the functions to those necessary for tool observation, we have achieved “Simplified operation,” “Reduced investment,” and “Space saving.”
In addition, by utilizing a 3D printer, the device has been made lighter, improving portability and protection of the objects (tools), while pursuing ease of use.

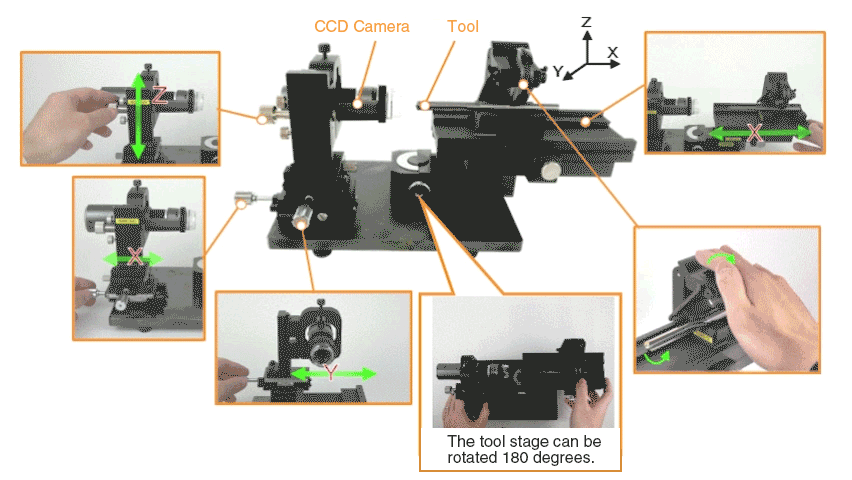

How to operate; — Just turn the knob to operate

POINT! The only equipment required is a PC and a CCD camera

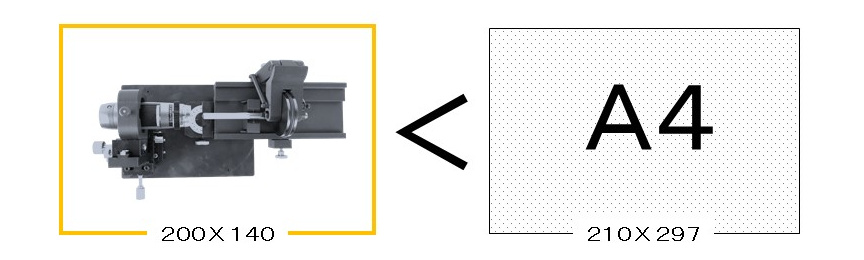

POINT! Space-saving, less than A4 size.

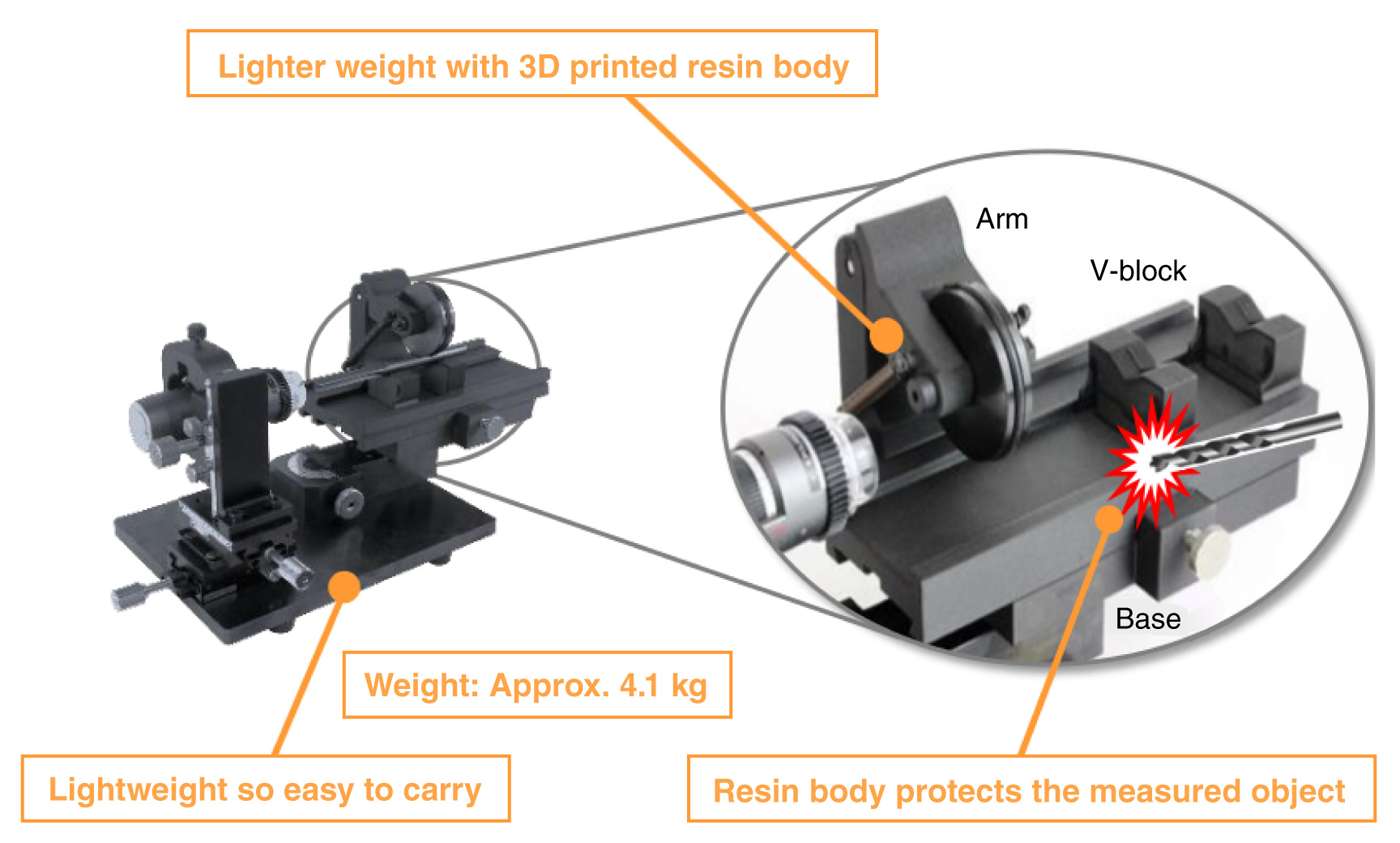

POINT! Lightweight design for portability, protection of tools being measured when in contact

POINT!　Various measurement objects can be handled by changing attachments

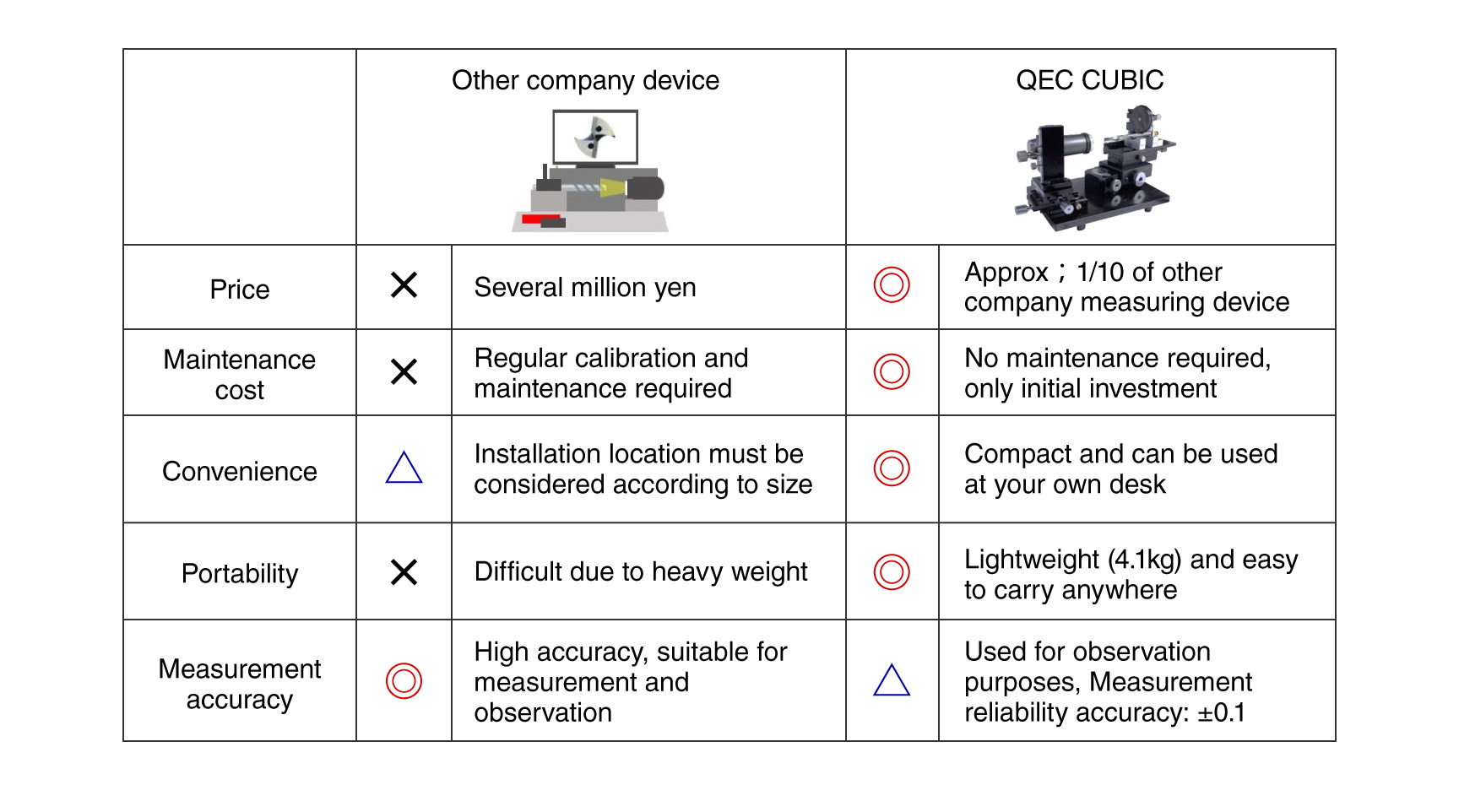

POINT! Characteristic comparison with measuring equipment

Background / Point for Development

Background

  • Observing tool wear and other conditions usually requires a stereo microscope, as well as an optical measuring device to numerically measure the amount of wear. Optical measuring devices are large, heavy, and inconvenient to carry, so careful consideration of the installation location is required in advance.
  • There was a need for a simple and inexpensive device that could easily observe the shape and wear status of cutting edges when observing tools.

Point for Development

  • “QEC CUBIC” is a tool observation stand that has been designed with the purpose of tool observation in mind, with the following functions and requirements:
    “Quick operation,” “Economical,” “Compact,” “Carriable,” and “Carbon neutral promotion.”

Origin of the Name

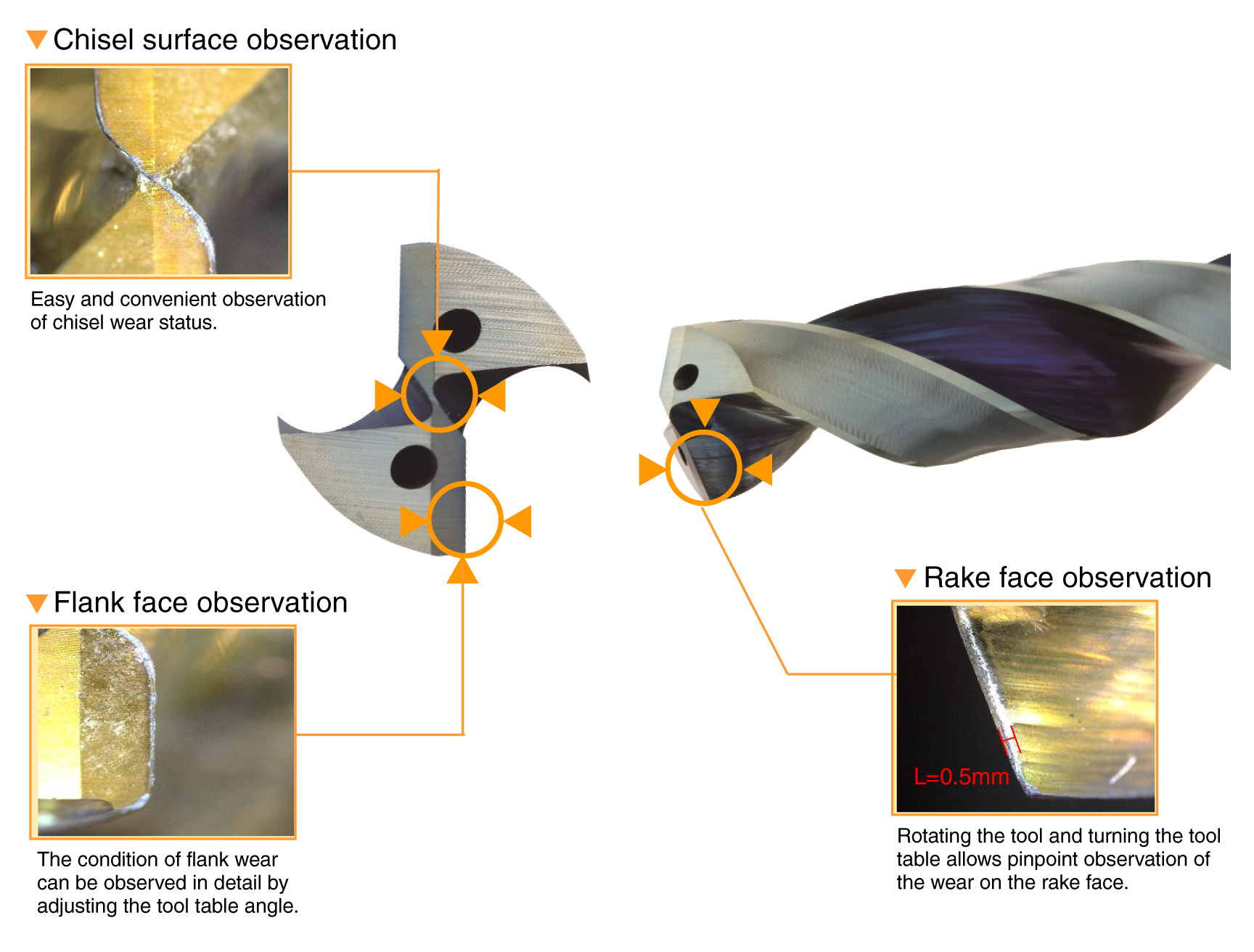

Observation Examples

*Observation of other desired areas is also possible

Product Specification

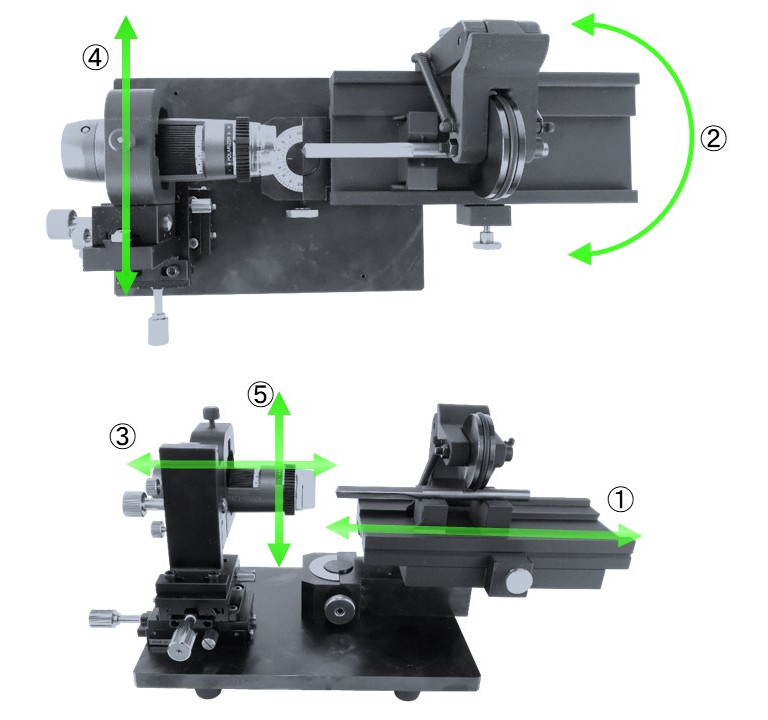

Combination of modules for each form

No.ItemQuantity
Tool
Stage		①Forward/Backward
Movement		91 mm
②Stage Rotation Angle180 degrees
Camera
Stand		③Forward/Backward
Movement		42 mm
④Left/Right Movement42 mm
⑤Up/Down movement45 mm
